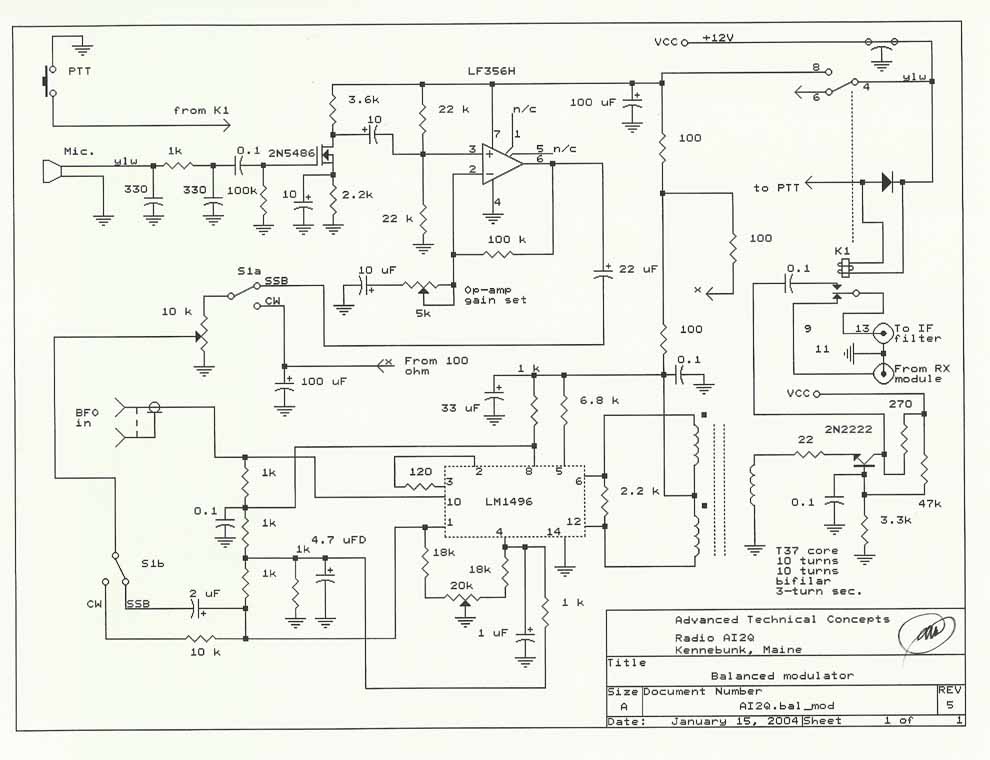

Here's the schematic for the KISS transceiver's SSB generator. It reflects updated speech-amplifier and LM1496-based balanced modulator circuitry, along with filter relay and DC offset switching.

The DC offset pot serves two purposes. In the "SSB" position it works as a microphone gain control. In the "CW" position it unbalances the LM1496 chip for CW/tuning purposes. Switch S1a/b selects the function of the pot.



Click here to return to home page.

Click here to continue to additional balanced-modulator circuit and construction details.
