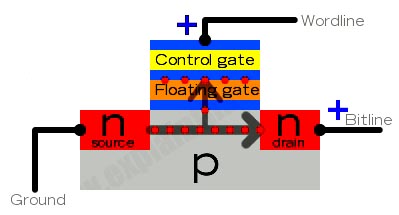

If a positive voltage is applied to the xstr’s Bitline as well as the Wordline, electrons get pulled in from source to drain. A few also wriggle through the oxide layer by a process called tunneling, and they get stuck on the floating gate. That stores a binary One.
